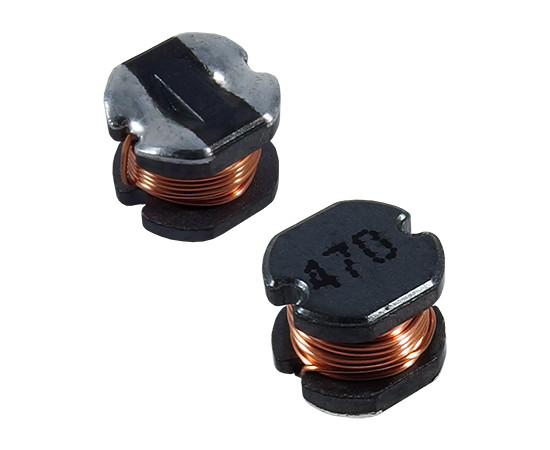

SMD Power inductor; 3.3uH

Symbol Micros: D DLG0504-003.3

123319

D DLG0504-003.3

Contractor Symbol:

Case : Rys.DLG0504

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 3.3uH; 20%; curent: 3.05A; resistance: 0.021R; dimensions: 5.2x5.8x4.5mm

Parameters

Current:	3,05A
Dimensions:	5.2x5.8x4.5mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,021 Ohm

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DLG0504

In stock:

1500 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,2664	0,1462	0,0966	0,0815	0,0760

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DLG0504

In stock:

510 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,2664	0,1462	0,0966	0,0815	0,0760

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500/3000 Quantity (multiple: 1)

- +

• Parameters

Current:	3,05A
Dimensions:	5.2x5.8x4.5mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,021 Ohm
Tolerance [%]:	20%
