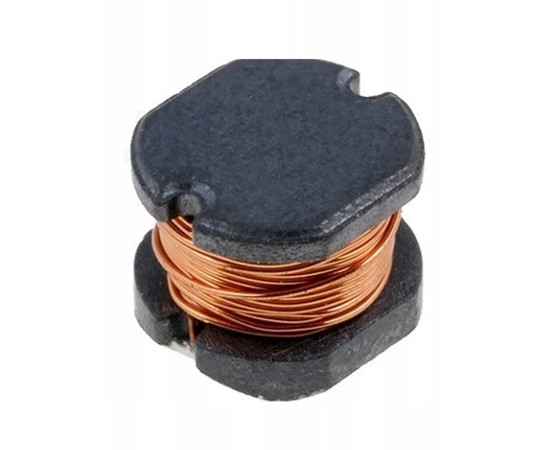

SMD Power inductor; 120uH

Symbol Micros: D DLG0504-120.0/0.47A

533801

D DLG0504-120.0/0.47A

Contractor Symbol:

Case : Rys.DLG0504 II

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 120uH; current: 0.47A; resistance: 0.754R; dimensions: 5.2x6.3x4.5mm

Parameters

Current:	0,47A
Dimensions:	5.2x6.3x4.5mm
Inductance:	120uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,754Ohm

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DLG0504 II

In stock:

1500 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,2340	0,1288	0,0850	0,0718	0,0670

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500/4500 Quantity (multiple: 1)

- +

• Parameters

Current:	0,47A
Dimensions:	5.2x6.3x4.5mm
Inductance:	120uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	0,754Ohm
Tolerance [%]:	10%
