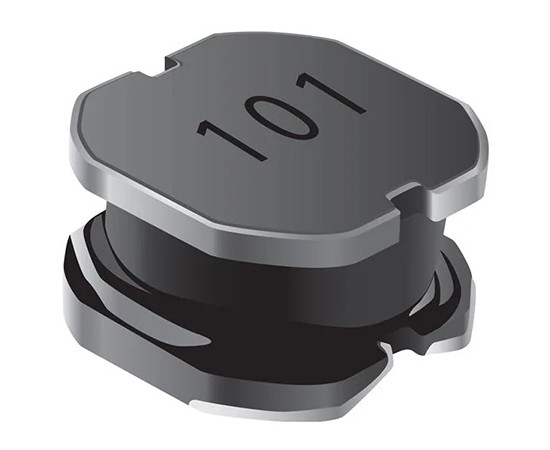

SRN1060-101M Bourns Power inductor

Symbol Micros: D DLG1005-100.0 BRNS

411267

D DLG1005-100.0 BRNS

Contractor Symbol:

Case : Rys.SRN1060

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 100uH; current: 1.70A; resistance: 0.21R; dimensions: 10x9,8x6mm operating temperature: -40°C ~ 125°C

Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	100uH
Current:	1,7A
Resistance:	210 mOhm
Dimensions:	10x9,8x6mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	100uH
Current:	1,7A
Resistance:	210 mOhm
Dimensions:	10x9,8x6mm
Operating temperature (range):	-40°C ~ 125°C
