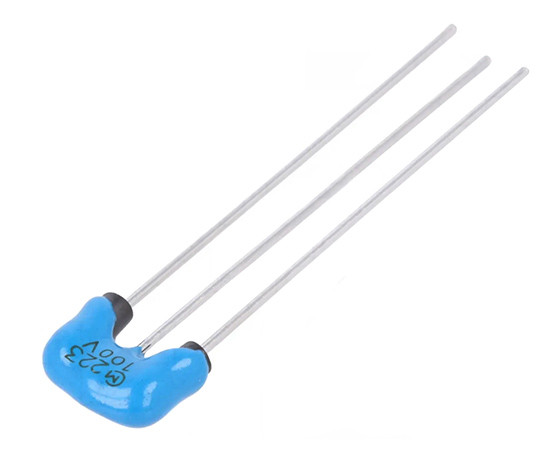

DSS1NB32A102Q55B Murata Anti-interference filter

Symbol Micros: D DSS1nb32a102q55b

281223

D DSS1nb32a102q55b

Contractor Symbol:

Case : Rys.DSS1NB

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 1nF; 100A; 6A; 10%; THT; operating temperature: -40°C ~ 85°C; dimensions: 8,5x7,5x3,5mm; r=5mm

Parameters

Body dimensions:	8,5x7,5x3,5mm
Capacitance:	1nF
Filter type:	Anti-Interference
Manufacturer:	MURATA
Mounting:	THT
Operating current:	6A
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: DSS1NB32A102Q55B RoHS Case style: Rys.DSS1NB Datasheet

In stock:

45 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,4108	0,2677	0,1923	0,1659	0,1576

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: DSS1NB32A102Q55B Case style: Rys.DSS1NB

External warehouse:

65000 pcs.

Quantity of pcs.	1000+ (Please wait for the order confirmation)
Net price (EUR)	0,1576

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Body dimensions:	8,5x7,5x3,5mm
Capacitance:	1nF
Filter type:	Anti-Interference
Manufacturer:	MURATA
Mounting:	THT
Operating current:	6A
Operating temperature (range):	-40°C ~ 85°C
Terminal pitch [m]:	5,0mm
Voltage [AC]:	100V
