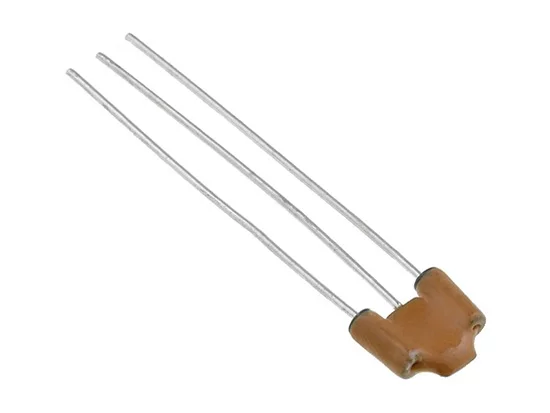

DSS6NZ82A103Q55 Murata Anti-interference filter

Symbol Micros: D DSS6NZ82A103Q55

78279

D DSS6NZ82A103Q55

Contractor Symbol:

Case : Rys.DSS6NZ

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 10nF; 100V; 6A; 30%; THT; operating temperature: -25°C ~ 85°C; dimensions: 8x7x2,54mm; r=5mm

Parameters

Body dimensions:	8x7x2,54mm
Capacitance:	10nF
Filter type:	Anti-Interference
Manufacturer:	MURATA
Mounting:	THT
Operating current:	6A
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Body dimensions:	8x7x2,54mm
Capacitance:	10nF
Filter type:	Anti-Interference
Manufacturer:	MURATA
Mounting:	THT
Operating current:	6A
Operating temperature (range):	-25°C ~ 85°C
Terminal pitch [m]:	5,0mm
Voltage [AC]:	100V
