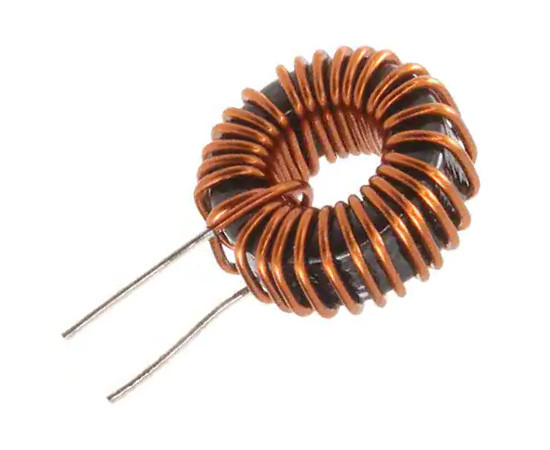

Toroid inductor; 100uH

Symbol Micros: D DT0100.0/6A/21.5x11

134145

D DT0100.0/6A/21.5x11

Contractor Symbol:

Case : Rys.DT21.5x11

Datasheet

Technical drawing Add to favourites

Toroid inductor; THT; inductance: 100uH; 10%; current: 6A; resistance: 55mR; dimensions: 21,5x11mm

Parameters

Manufacturer:	N/A
Inductor type:	Toroidal
Mounting:	THT
Inductance:	100uH
Current:	6A
Resistance:	0,055 Ohm
Tolerance [%]:	10%

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DT21.5x11

In stock:

500 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0331	0,6887	0,5686	0,5131	0,4923

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.DT21.5x11

In stock:

320 pcs.

Quantity of pcs.	1+	5+	50+	150+	600+
Net price (EUR)	1,0331	0,6887	0,5316	0,5061	0,4900

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/150/600 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	N/A
Inductor type:	Toroidal
Mounting:	THT
Inductance:	100uH
Current:	6A
Resistance:	0,055 Ohm
Tolerance [%]:	10%
Dimensions:	21,5x11mm
