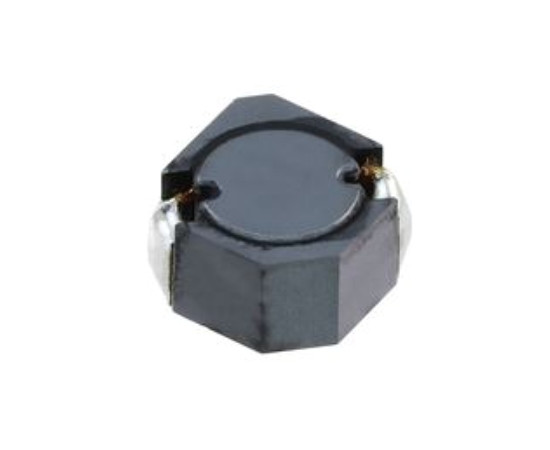

ELL8TP101MB Panasonic Power inductor

Symbol Micros: D ELL8TP101MB PAN

268462

D ELL8TP101MB PAN

Contractor Symbol:

Case : Rys.ELL8

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 100uH; 20%; current: 0,9A; resistance: 0,19R; dimensions: 8x8x4,7mm

Parameters

Manufacturer:	PANASONIC
Inductor type:	Power
Mounting:	SMD
Inductance:	100uH
Current:	0,9A
Resistance:	0,19 Ohm
Tolerance:	20%

All parameters

Manufacturer:: Panasonic Manufacturer part number: ELL8TP101MB RoHS Case style: Rys.ELL8 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,3548	1,0338	0,8544	0,7505	0,7128

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	PANASONIC
Inductor type:	Power
Mounting:	SMD
Inductance:	100uH
Current:	0,9A
Resistance:	0,19 Ohm
Tolerance:	20%
Dimensions:	8x8x4.7mm
