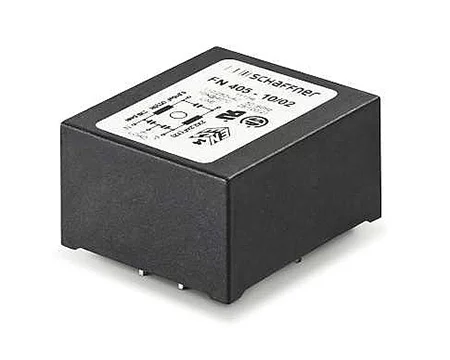

FN 405-3-02 Schaffner Filter
| Inductance: | 2mH |
| Operating current: | 3A |
| Capacitance [Cx]: | 15nF |
| Body dimensions: | 36x31x19,5mm |
| Filter type: | Anti-Interference |
| Manufacturer: | Schaffner |
| Max. operating voltage: | 250V |
| Quantity of pcs. | 1+ | 2+ | 4+ | 10+ | 30+ |
|---|---|---|---|---|---|
| Net price (EUR) | 11,8186 | 10,5560 | 9,6592 | 8,8545 | 8,2645 |
| Quantity of pcs. | 1+ (Need a significantly larger quantity? Ask for price). |
|---|---|
| Net price (EUR) | 9,8252 |
| Inductance: | 2mH |
| Operating current: | 3A |
| Capacitance [Cx]: | 15nF |
| Body dimensions: | 36x31x19,5mm |
| Filter type: | Anti-Interference |
| Manufacturer: | Schaffner |
| Max. operating voltage: | 250V |
| Mounting: | THT |
| Operating temperature (range): | -25°C ~ 100°C |
PCB-mounting filter
Technical data:
Rated current: 3 A
Rated voltage: 250 VAC
Rated inductance: 2 mH(2x)
Capacitance, CX: 15 nF
Capacitance, CY: 2.2 nF(2x)
IEC-climate category: 25/100/21
Attenuation @ 150 MHz: 30 dB
Attenuation @ 10 MHz: 38 dB
Test voltage P/N-E: 2000 VAC
Dimensions L x W x H: 36 x 31 x 19.5 mm
Leakage current: <0.19 mA mA
Temperature range: -25...+100 °C
The FN 405 PCB filter is a single-phase filter designed for easy and fast PCB-mounting. Choosing the FN 405 product line brings you the rapid availability of a standard filter associated with the necessary safety acceptance. Standard PCB single-phase filters are a practical solution helping you to pass EMI system approval in a short time. A selection on amperage ratings are designed to offer you the desired standard product.
Features and benefits:
• Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• PCB through hole mounting
• Low profile
• Custom specific versions on request
Typical applications:
Electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
