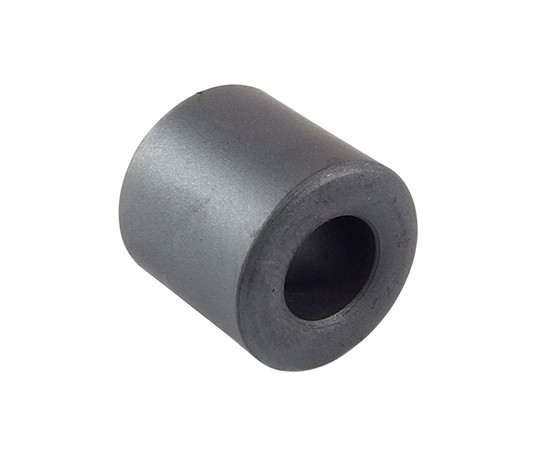

Ring ferrite; 50R

Symbol Micros: D FRH16x16x8

122266

D FRH16x16x8

Contractor Symbol:

Case : Rys.FRH16x16x8

Datasheet

Technical drawing Add to favourites

Ring ferrite; dimensions: 16x8x16mm; 50R @ 25MHz; 125R @ 100MHz

Parameters

Dimensions:	16x8x16mm
Ferrite type:	Sleeve
Impedance @ 100MHz:	125Ohm
Impedance @ 25MHz:	50Ohm
Diameter:	8mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-20

Quantity of pcs.: 1496

• Parameters

Dimensions:	16x8x16mm
Ferrite type:	Sleeve
Impedance @ 100MHz:	125Ohm
Impedance @ 25MHz:	50Ohm
Diameter:	8mm
