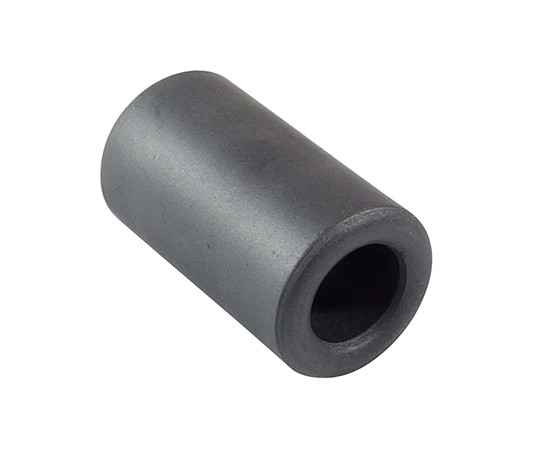

Ring ferrite; 70R

Symbol Micros: D FRH16x28x9

122267

D FRH16x28x9

Contractor Symbol:

Case : Rys.FRH16x28x9

Datasheet

Technical drawing Add to favourites

Ring ferrite; dimensions: 16x9x28mm; 70R @ 25MHz; 140R @ 100MHz

Parameters

Dimensions:	16x9x28mm
Ferrite type:	Sleeve
Impedance @ 100MHz:	140 Ohm
Impedance @ 25MHz:	70Ohm
Diameter:	9mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	16x9x28mm
Ferrite type:	Sleeve
Impedance @ 100MHz:	140 Ohm
Impedance @ 25MHz:	70Ohm
Diameter:	9mm
