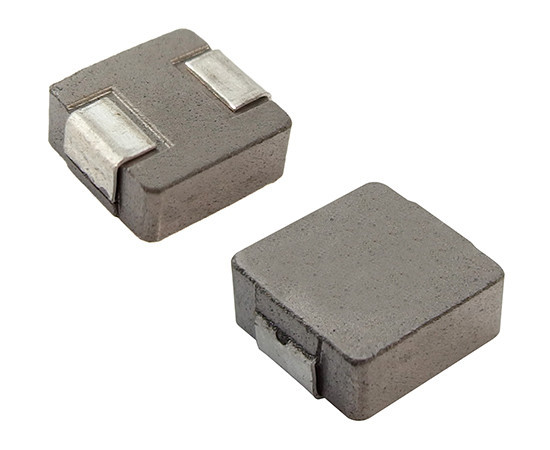

SMD Power inductor; 22uH

Symbol Micros: D HPI1260-022.0

118573

D HPI1260-022.0

Contractor Symbol:

Case : Rys.HPI1260

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 22uH; 20%; current: 6A; resistance: 0.034R; dimensions: 12.8x13.2x6mm

Parameters

Current:	6A
Dimensions:	12.8x13.2x6mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	34 mOhm

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.HPI1260

In stock:

500 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,7858	0,4952	0,3882	0,3534	0,3417

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.HPI1260

In stock:

61 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,7858	0,4952	0,3882	0,3534	0,3417

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Current:	6A
Dimensions:	12.8x13.2x6mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Resistance:	34 mOhm
Tolerance [%]:	20%
