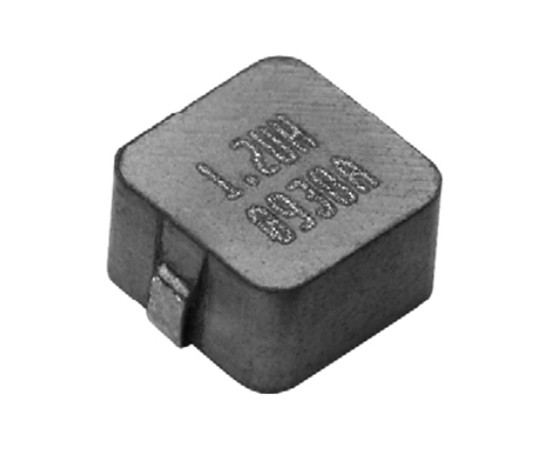

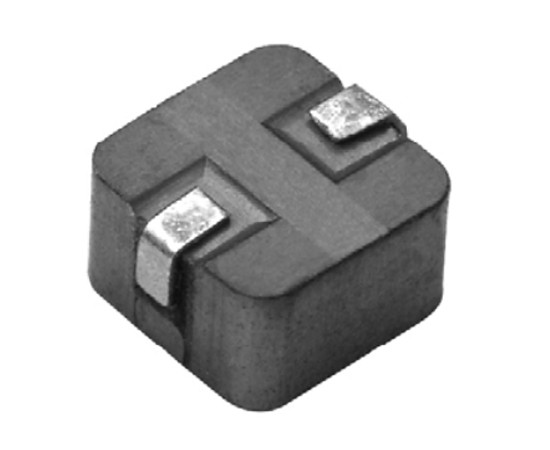

IHLP1212BZER2R2M11 Vishay Power inductor

Symbol Micros: D IHLP1212BZER2R2M11

411667

D IHLP1212BZER2R2M11

Contractor Symbol:

Case : Rys.IHLP1212BZ

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 2.2uH; 20%; current: 3A; resistance: 0,046R; dimensions: 3x3,65x2mm; operating temperature: -55°C ~ 125°C

Parameters

Current:	3A
Dimensions:	3x3,65x2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	3A
Dimensions:	3x3,65x2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	0,046 Ohm
Tolerance [%]:	20%
