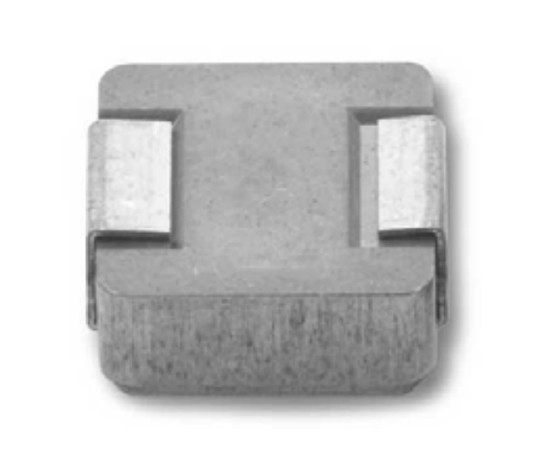

IHLP2020CZER1R0M01 Vishay Power inductor

Symbol Micros: D IHLP2020CZER1R0M01

421700

D IHLP2020CZER1R0M01

Contractor Symbol:

Case : Rys.IHLP2020CZ

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 1uH; 20%; current: 9.2A; resistance: 13.7mR; dimensions: 5,18x5,49x3mm; operating temperature: -55°C ~ 125°C

Parameters

Manufacturer:	VISHAY
Inductor type:	Power
Mounting:	SMD
Inductance:	1uH
Current:	9,2A
Resistance:	13,7mOhm
Tolerance:	20%

All parameters

Manufacturer:: Vishay Manufacturer part number: IHLP2020CZER1R0M01 Case style: Rys.IHLP2020CZ

External warehouse:

4000 pcs.

Quantity of pcs.	2000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3058

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	VISHAY
Inductor type:	Power
Mounting:	SMD
Inductance:	1uH
Current:	9,2A
Resistance:	13,7mOhm
Tolerance:	20%
Dimensions:	5.18x5.49x3mm
Operating temperature (range):	-55°C ~ 125°C
