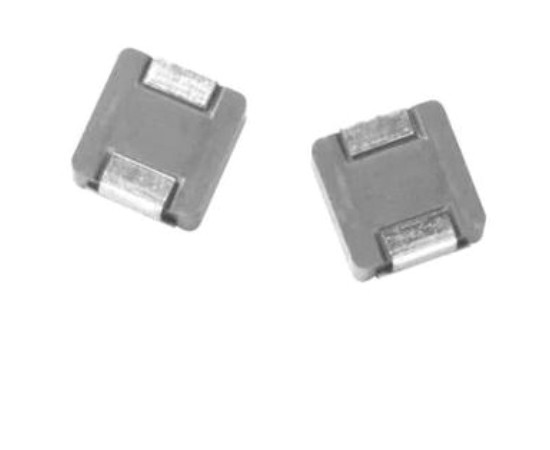

IHLP2525CZER2R2M01 Vishay Power inductor

Symbol Micros: D IHLP2525CZER2R2M01

268449

D IHLP2525CZER2R2M01

Contractor Symbol:

Case : Rys.IHLP2525CZ

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 2,2uH; 20%; current: 8A; resistance: 20mR; dimensions: 6,47x6,86x3mm; operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	6.47x6.86x3mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	8A
Resistance:	0,02 Ohm

All parameters

Manufacturer:: Vishay Manufacturer part number: IHLP2525CZER2R2M01 RoHS Case style: Rys.IHLP2525CZ Datasheet

In stock:

33 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8705	0,5780	0,4797	0,4329	0,4142

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	6.47x6.86x3mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	8A
Resistance:	0,02 Ohm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
