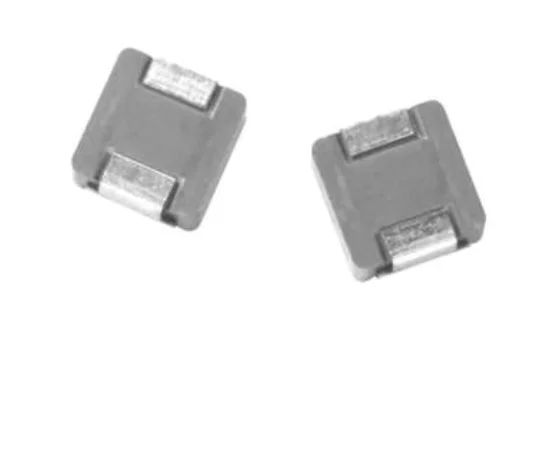

IHLP2525CZER3R3M01 Vishay Power inductor

Symbol Micros: D IHLP2525CZER3R3M01

421736

D IHLP2525CZER3R3M01

Contractor Symbol:

Case : Rys.IHLP2525CZ

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 3.3uH; 20%; current: 6A; resistance: 30mR; dimensions: 6,47x6,86x3mm; operating temperature: -55°C ~ 125°C

Parameters

Current:	6A
Dimensions:	6.47x6.86x3mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	6A
Dimensions:	6.47x6.86x3mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	0,03 Ohm
Tolerance [%]:	20%
