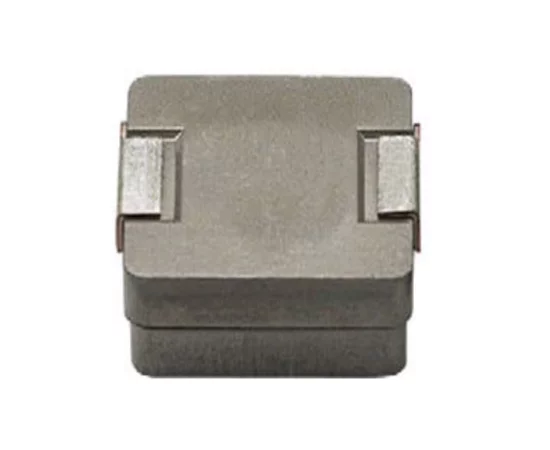

IHLP5050FDER100M51 Vishay Power inductor

Symbol Micros: D IHLP5050FDER100M51

493254

D IHLP5050FDER100M51

Contractor Symbol:

Case : Rys.IHLP5050FD

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 10uH; 20%; current: 12.1A; resistance: 17.76mR; dimensions: 12,9x13,462x6,4mm; operating temperature: -55°C ~ 155°C

Parameters

Manufacturer:	VISHAY
Inductor type:	Power
Mounting:	SMD
Inductance:	10uH
Current:	12,1A
Resistance:	17,76mOhm
Tolerance [%]:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	VISHAY
Inductor type:	Power
Mounting:	SMD
Inductance:	10uH
Current:	12,1A
Resistance:	17,76mOhm
Tolerance [%]:	20%
Dimensions:	12,9x13,462x6,4mm
Operating temperature (range):	-55°C ~ 155°C
