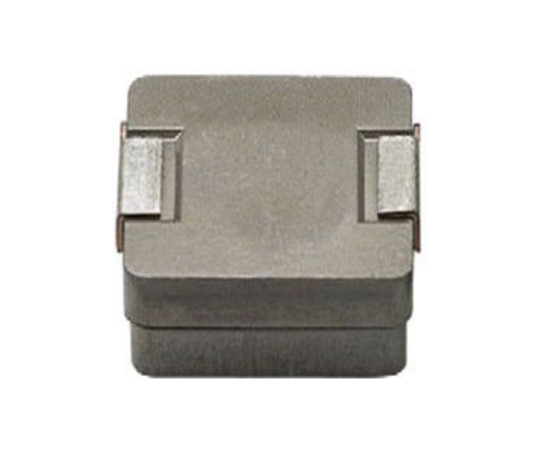

IHLP5050FDERR22MA1 Vishay Power inductor

Symbol Micros: D IHLP5050FDERR22MA1

493283

D IHLP5050FDERR22MA1

Contractor Symbol:

Case : Rys.IHLP5050FD

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 0.22uH; 20%; current: 53A; resistance: 0.7mR; dimensions: 12,9x13,462x6,4mm; operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	12,9x13,462x6,4mm
Inductance:	0,22uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	53A
Resistance:	0,7mOhm

All parameters

Manufacturer:: Vishay Manufacturer part number: IHLP5050FDERR22MA1 Case style: Rys.IHLP5050FD

External warehouse:

1000 pcs.

Quantity of pcs.	250+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0315

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	12,9x13,462x6,4mm
Inductance:	0,22uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	53A
Resistance:	0,7mOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
