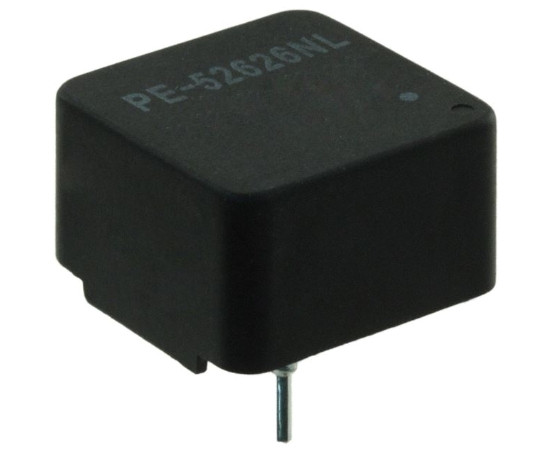

PE-52626NL PULSE Power inductor

Symbol Micros: D PE-52626NL PULSE

262076

D PE-52626NL PULSE

Contractor Symbol:

Case : Rys.PE-526xxNL

Datasheet

Technical drawing Add to favourites

Power Inductor; THT; 220uH; 20%; 1.5A; 0.42R; dimensions: 18.03x18.03x11,68mm; operating temperature: -40°C~130°C

Parameters

Manufacturer:	Pulse
Inductor type:	Power
Mounting:	THT
Inductance:	220uH
Current:	1,5A
Resistance:	0,42 Ohm
Tolerance:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Pulse
Inductor type:	Power
Mounting:	THT
Inductance:	220uH
Current:	1,5A
Resistance:	0,42 Ohm
Tolerance:	20%
Operating temperature (range):	-40°C ~ 130°C
Dimensions:	18.03x18.03x11,68mm
