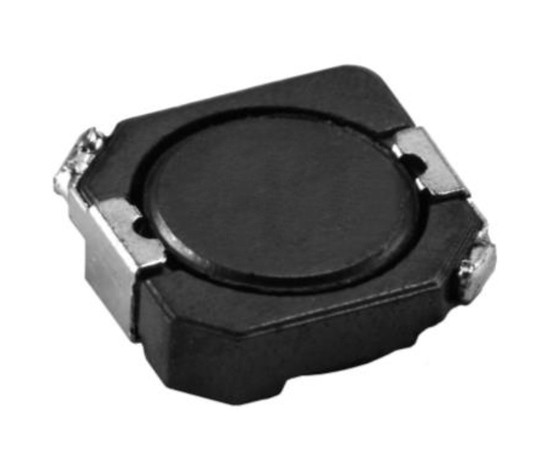

SMD Power inductor; 47uH

Symbol Micros: D PSDB1004-047.0

135239

D PSDB1004-047.0

Contractor Symbol:

Case : Rys.PSDB1004

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 47uH; 30%; current: 2.1A; resistance: 0.128R; dimensions: 10x10x4mm

Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	47uH
Current:	2,1A
Resistance:	0,128 Ohm
Tolerance [%]:	30%

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.PSDB1004

In stock:

5000 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3950	0,2182	0,1716	0,1589	0,1523

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/2000 Quantity (multiple: 1)

- +

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.PSDB1004

In stock:

0 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3950	0,2182	0,1716	0,1589	0,1523

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	47uH
Current:	2,1A
Resistance:	0,128 Ohm
Tolerance [%]:	30%
Dimensions:	10x10x4mm
