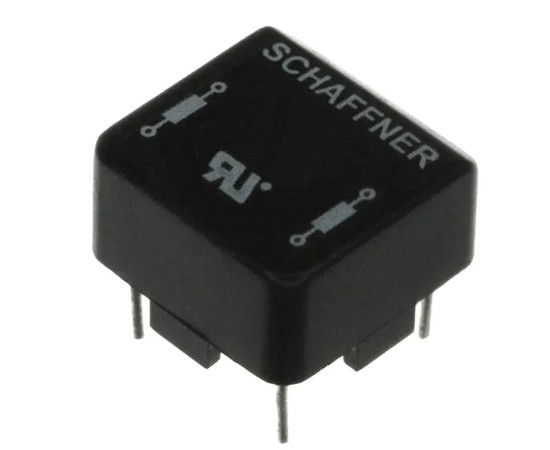

RN 102-1.5-02-1M6 Schaffner Inductor

Symbol Micros: D RN102-1.5-02-1M6

258259

D RN102-1.5-02-1M6

Contractor Symbol:

Case : Rys.RN102

Datasheet

Technical drawing Add to favourites

Inductor; THT; 1.6mH; -30%, +50%; 1.5A; 94mR; dimensions: 10x10mm; operating temperature: -40°C~100°C

Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	1,6mH
Current:	1,5A
Resistance:	94 mOhm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C

All parameters

Manufacturer:: SCHAFFNER Manufacturer part number: RN102-1.5-02-1M6 RoHS Case style: Rys.RN102 Datasheet

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	2,6377	2,1480	1,8642	1,7033	1,6229

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

Manufacturer:: SCHAFFNER Manufacturer part number: RN102-1.5-02-1M6 RoHS Case style: Rys.RN102 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,6377	2,1480	1,8642	1,7270	1,6489

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	1,6mH
Current:	1,5A
Resistance:	94 mOhm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C
Dimensions:	10x10mm
