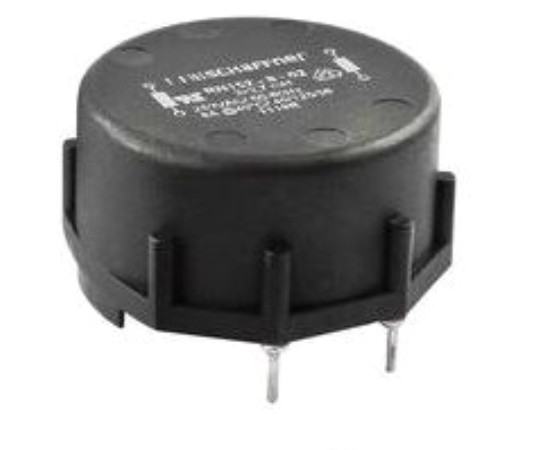

RN 152-6-02-3M9 Schaffner Inductor

Symbol Micros: D RN152-6-02-3M9

258269

D RN152-6-02-3M9

Contractor Symbol:

Case : Rys.RN152

Datasheet

Technical drawing Add to favourites

Inductor; THT; 3.9mH; -30%, +50%; 6A; 42mR; dimensions: 40x15mm; operating temperature: -40°C~100°C

Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	3,9mH
Current:	6A
Resistance:	42 mOhm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C

All parameters

Manufacturer:: SCHAFFNER Manufacturer part number: RN152-6-02-3M9 RoHS Case style: Rys.RN152 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,1711	3,5120	3,1142	2,9165	2,7988

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: SCHAFFNER Manufacturer part number: RN152-6-02-3M9 Case style: Rys.RN152

External warehouse:

54 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,6322

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	3,9mH
Current:	6A
Resistance:	42 mOhm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C
Dimensions:	40x15mm
