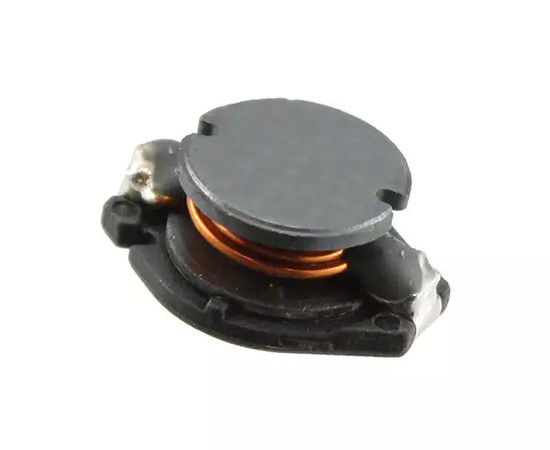

SDR1005-103KL Bourns Power inductor

Symbol Micros: D SDR1005-103KL

114025

D SDR1005-103KL

Contractor Symbol:

Case : Rys.SDR1005

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 10000uH; 10%; current: 0,1A; resistance: 39R; dimensions: 12,7x10x5mm; operating temperature: -40°C ~ 125°C

Parameters

Current:	0,1A
Dimensions:	12.7x10x5mm
Inductance:	10mH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	0,1A
Dimensions:	12.7x10x5mm
Inductance:	10mH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
Resistance:	39 Ohm
Tolerance [%]:	10%
