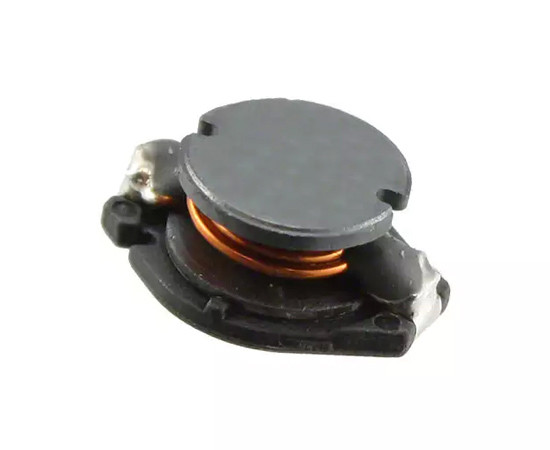

SDR1005-4R7ML Bourns Power inductor

Symbol Micros: D SDR1005-4R7ML

114026

D SDR1005-4R7ML

Contractor Symbol:

Case : Rys.SDR1005

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 4.7uH; 20%; current: 4,5A; resistance: 0,019R; dimensions: 12,7x10x5mm; operating temperature: -40°C ~ 125°C; equivalent: D DL22-4.7

Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	4,7uH
Current:	4,5A
Resistance:	0,019 Ohm
Tolerance [%]:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	4,7uH
Current:	4,5A
Resistance:	0,019 Ohm
Tolerance [%]:	20%
Dimensions:	12.7x10x5mm
Operating temperature (range):	-40°C ~ 125°C
