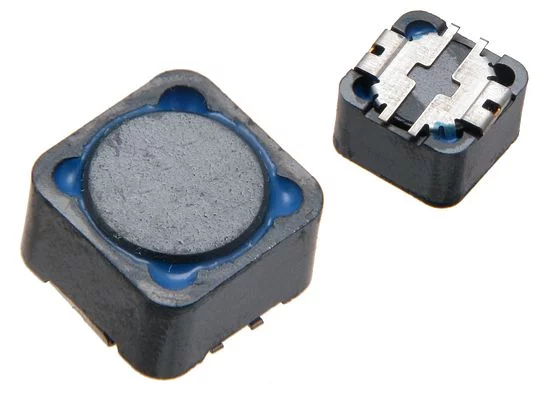

SMD Power inductor; 22uH

Symbol Micros: D SP124/0022.0

49320

D SP124/0022.0

Contractor Symbol:

Case : Rys.SP124

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 22uH; 20%; current: 2.9A; resistance: 0.066R; dimensions: 12x12x4.5mm

Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	2,90A
Resistance:	0,066 Ohm
Tolerance [%]:	20%

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.SP124

In stock:

458 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4292	0,2382	0,1877	0,1703	0,1648

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.SP124

In stock:

0 pcs.

Quantity of pcs.	3+	20+	100+	500+	1000+
Net price (EUR)	0,4292	0,2358	0,1856	0,1681	0,1648

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	N/A
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	2,90A
Resistance:	0,066 Ohm
Tolerance [%]:	20%
Dimensions:	12x12x4.5mm
