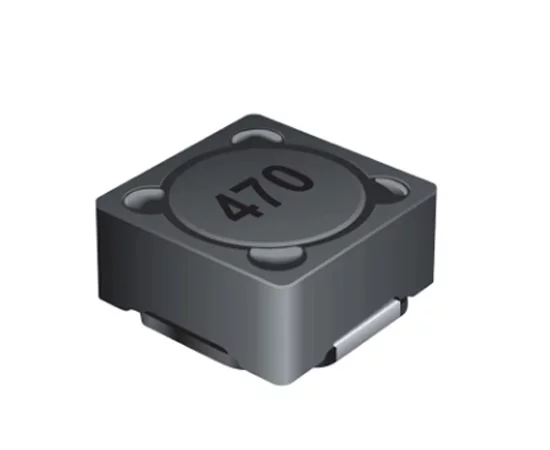

SRR1260-220M Bourns Power inductor

Symbol Micros: D SP125/0022.0/4A

184481

D SP125/0022.0/4A

Contractor Symbol:

Case : Rys.SRR1260

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 4A; resistance: 0.043R; dimensions: 12.5x12.5x6mm; operating temperature: -40°C ~ 125°C

Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	4A
Resistance:	0,043 Ohm
Tolerance:	20%

All parameters

Manufacturer:: Bourns Manufacturer part number: SRR1260-220M RoHS Case style: Rys.SRR1260 Datasheet

In stock:

385 pcs.

Quantity of pcs.	1+	5+	20+	100+	600+
Net price (EUR)	0,9144	0,6088	0,5030	0,4537	0,4349

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
600 Quantity (multiple: 1)

- +

Manufacturer:: Bourns Manufacturer part number: SRR1260-220M Case style: Rys.SRR1260

External warehouse:

10200 pcs.

Quantity of pcs.	600+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4671

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
600

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	22uH
Current:	4A
Resistance:	0,043 Ohm
Tolerance:	20%
Dimensions:	12.5x12.5x6mm
Operating temperature (range):	-40°C ~ 125°C
