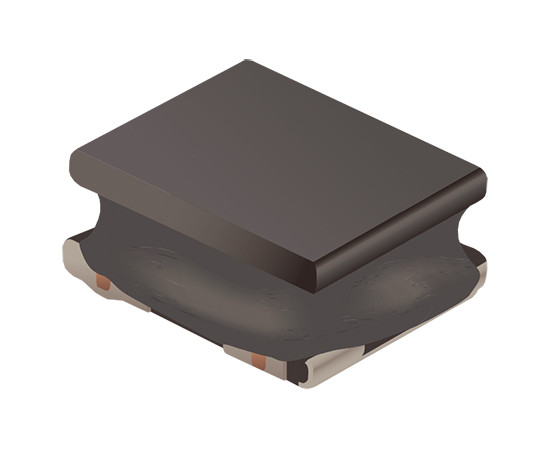

SRN2010TA-220M Bourns Power inductor

Symbol Micros: D SRN2010TA-022.00

497554

D SRN2010TA-022.00

Contractor Symbol:

Case : Rys.2010TA

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 22uH; 20%; current: 0.27A; resistance: 2R; dimensions: 2x1,6x1mm; operating temperature: -55°C ~ 125°C

Parameters

Current:	270mA
Dimensions:	2x1,6x1mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	270mA
Dimensions:	2x1,6x1mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	2 Ohm
Tolerance [%]:	20%
