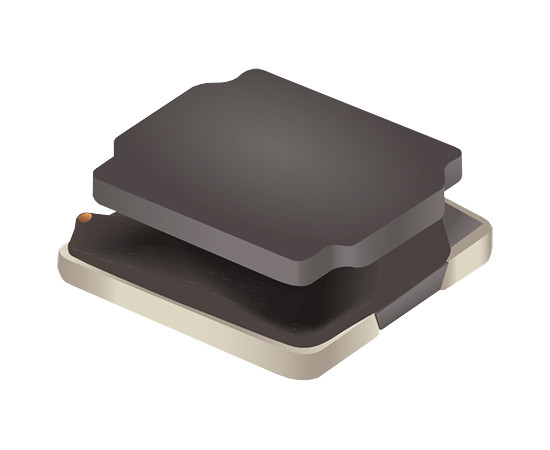

SRN3012TA-2R2M Bourns Power inductor

Symbol Micros: D SRN3012TA-002.20

497580

D SRN3012TA-002.20

Contractor Symbol:

Case : Rys.SRN3012TA

Datasheet

Technical drawing Add to favourites

SMD Power inductor; inductance: 2.2uH; 20%; current: 1.7A; resistance: 0.08R; dimensions: 3x3x1,2mm; operating temperature: -55°C ~ 125°C

Parameters

Current:	1,7A
Dimensions:	3x3x1,2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	1,7A
Dimensions:	3x3x1,2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	80 mOhm
Tolerance [%]:	20%
