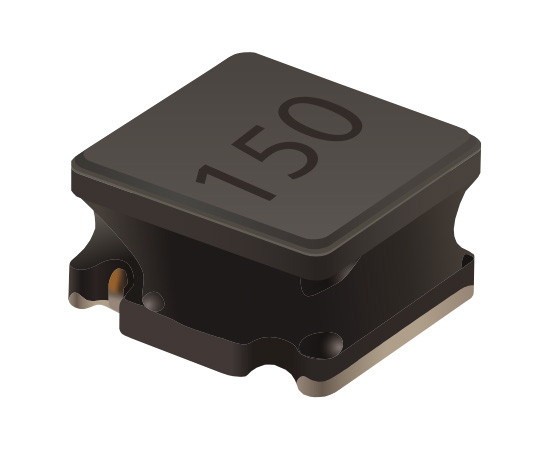

SRN4026-2R2Y Bourns Power inductor

Symbol Micros: D SRN4026-002.2

497622

D SRN4026-002.2

Contractor Symbol:

Case : Rys.SRN4026

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 2.2uH; 30%; current: 2.1A; resistance: 29mR; dimensions: 4x4x2.5mm; operating temperature: -40°C ~ 125°C

Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	2,1A
Resistance:	0,029 Ohm
Tolerance [%]:	30%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Bourns
Inductor type:	Power
Mounting:	SMD
Inductance:	2,2uH
Current:	2,1A
Resistance:	0,029 Ohm
Tolerance [%]:	30%
Dimensions:	4x4x2.5mm
Operating temperature (range):	-40°C ~ 125°C
