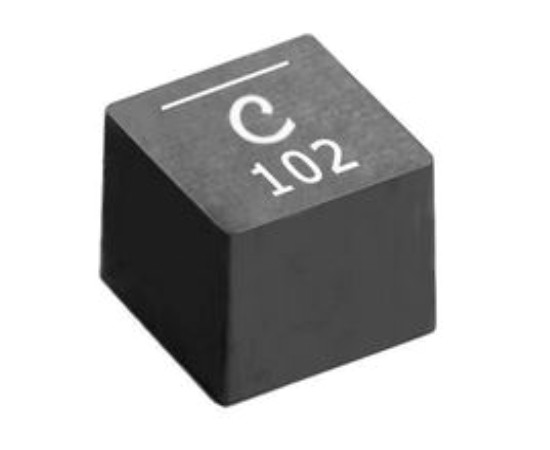

XAL1010-153MEB Coilcraft Power inductor

Symbol Micros: D XAL1010-153MEB

312919

D XAL1010-153MEB

Contractor Symbol:

Case : Rys.XAL1010

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 15uH; 20%; current: 13.8A; resistance: 18.6mR; dimensions: 10x10x11,3mm; operating temperature: -40°C ~ 125°C

Parameters

Dimensions:	11.3x10x10mm
Inductance:	15uH
Inductor type:	Power
Manufacturer:	Coilcraft
Mounting:	SMD
Current:	13,8A
Resistance:	0,0186 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	11.3x10x10mm
Inductance:	15uH
Inductor type:	Power
Manufacturer:	Coilcraft
Mounting:	SMD
Current:	13,8A
Resistance:	0,0186 Ohm
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	20%
