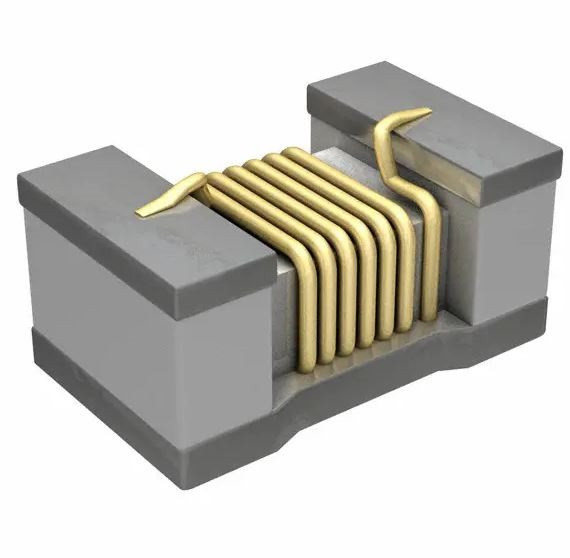

LQW15AN15NG80D Murata Inductor

Symbol Micros: D0402S0000.015/1.150A/0.114Rg

313373

D0402S0000.015/1.150A/0.114Rg

Contractor Symbol:

Case : Rys.LQW15AN

Datasheet

Add to favourites

Inductor; SMD0402; 15nH; 2%; 1.150A; 0.114R; 100MHz; operating temperature: -40°C~85°C

Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Inductance:	15nH
Current:	1,15A
Resistance:	0,114 Ohm
Tolerance:	2%

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQW15AN15NG80D Case style: Rys.LQW15AN

External warehouse:

10000 pcs.

Quantity of pcs.	10000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0508

Add inquiry (RFQ)

Packaging:
10000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Inductance:	15nH
Current:	1,15A
Resistance:	0,114 Ohm
Tolerance:	2%
Operating temperature (range):	-55°C ~ 125°C
