LQG15HS56NH02D Murata Inductor

Symbol Micros: D0402S0000.056/0.250A/0.82Rh

313016

D0402S0000.056/0.250A/0.82Rh

Contractor Symbol:

Case : Rys.LQG15

Datasheet

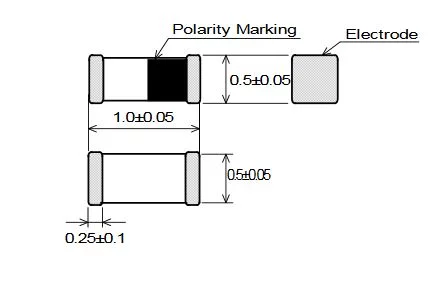

Technical drawing Add to favourites

Inductor; SMD0402; 56nH; 3%; 0.250A; 0.82R; 100MHz; operating temperature: -40°C~85°C

Parameters

Case:	0402
Current:	0,25A
Inductance:	56nH
Manufacturer:	MURATA
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	0,82 Ohm

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQG15HS56NH02D Case style: Rys.LQG15

External warehouse:

30000 pcs.

Quantity of pcs.	20000+ (Please wait for the order confirmation)
Net price (EUR)	0,0112

Add inquiry (RFQ)

Packaging:
10000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Case:	0402
Current:	0,25A
Inductance:	56nH
Manufacturer:	MURATA
Mounting:	SMD
Operating temperature (range):	-55°C ~ 125°C
Resistance:	0,82 Ohm
Tolerance:	3%
