LQW15AN72NJ00D Murata Inductor

Symbol Micros: D0402S0000.072/0.135A/2.10Rj

312936

D0402S0000.072/0.135A/2.10Rj

Contractor Symbol:

Case : Rys.LQW15

Datasheet

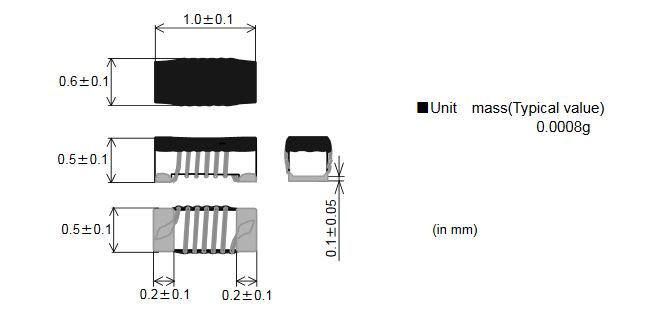

Technical drawing Technical drawing Add to favourites

Inductor; SMD0402; 72nH; 5%; 0.135A; 2.10R; 100MHz; operating temperature: -40°C~85°C

Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Inductance:	72nH
Current:	0,135A
Resistance:	2,1 Ohm
Tolerance:	5%

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQW15AN72NJ00D Case style: Rys.LQW15

External warehouse:

10000 pcs.

Quantity of pcs.	10000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0362

Add to comparison tool Add inquiry (RFQ)

Packaging:
10000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Inductance:	72nH
Current:	0,135A
Resistance:	2,1 Ohm
Tolerance:	5%
Operating temperature (range):	-55°C ~ 125°C
