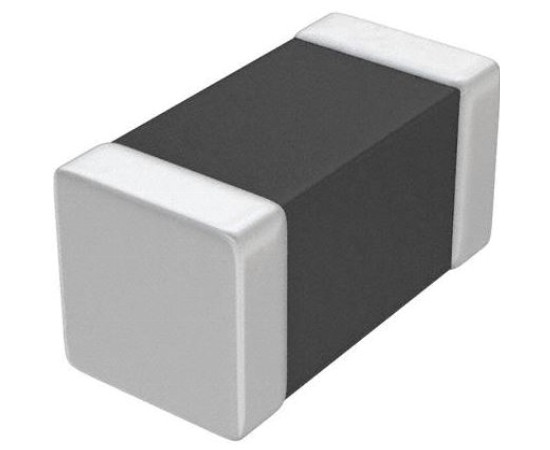

LQG18HN15NJ00D Murata Inductor

Symbol Micros: D0603S0000.015/0.350A/0.40Rj

311862

D0603S0000.015/0.350A/0.40Rj

Contractor Symbol:

Case : Rys.LQG18

Datasheet

Technical drawing Add to favourites

Inductor; SMD0603; 15nH; 5%; 0.600A; 0.35R; 100MHz; operating temperature: -40°C~85°C

Parameters

Case:	0603
Current:	0,6A
Inductance:	15nH
Manufacturer:	MURATA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Resistance:	0,35 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	0603
Current:	0,6A
Inductance:	15nH
Manufacturer:	MURATA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Resistance:	0,35 Ohm
Tolerance:	5%
