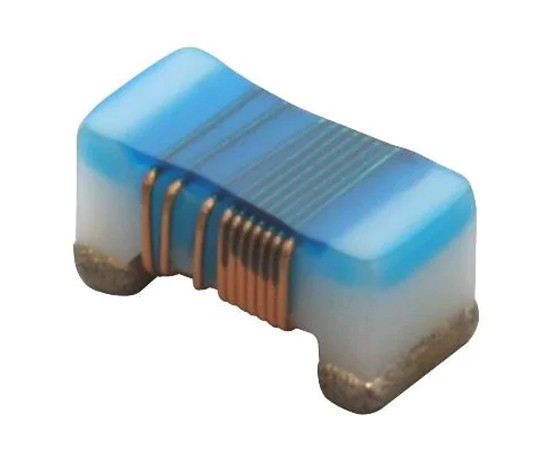

LQW18AN36NJ0ZD Murata Inductor

Symbol Micros: D0603S0000.036/0.400A/0.26Rj

400208

D0603S0000.036/0.400A/0.26Rj

Contractor Symbol:

Case : Rys.LQW18A

Datasheet

Technical drawing Add to favourites

Inductor; SMD0603; 36nH; 5%; 0.400A; 0.26R; 100MHz; operating temperature: -55°C~125°C

Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0603
Inductance:	36nH
Current:	0,4A
Resistance:	0,26 Ohm
Tolerance:	5%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0603
Inductance:	36nH
Current:	0,4A
Resistance:	0,26 Ohm
Tolerance:	5%
Operating temperature (range):	-55°C ~ 125°C
