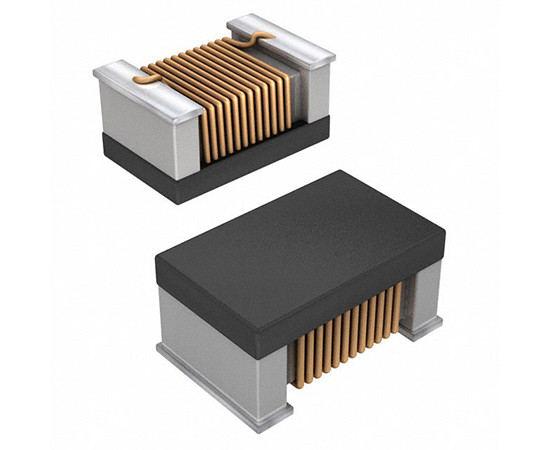

IMC0805ER6N8J01 Vishay Inductor

Symbol Micros: D0805S0000.006/0.600A/0.06Rj

530310

D0805S0000.006/0.600A/0.06Rj

Contractor Symbol:

Case : Rys. IMC-0805-01

Datasheet

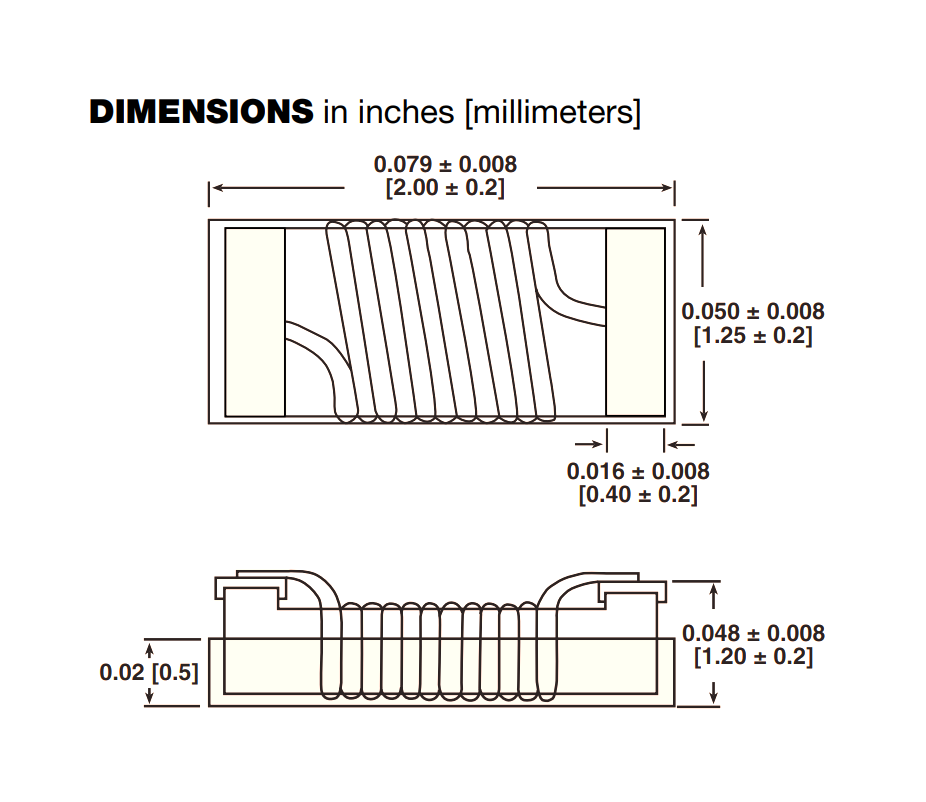

Technical drawing Add to favourites

Inductor; SMD0805; 6.8nH; 5%; 0.600A; 0.06R; 1GHz; operating temperature: -40°C~125°C

Parameters

Manufacturer:	VISHAY
Mounting:	SMD
Case:	0805
Inductance:	6,8nH
Current:	0,6A
Resistance:	0,06 Ohm
Tolerance:	5%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	VISHAY
Mounting:	SMD
Case:	0805
Inductance:	6,8nH
Current:	0,6A
Resistance:	0,06 Ohm
Tolerance:	5%
Operating temperature (range):	-40°C ~ 125°C
