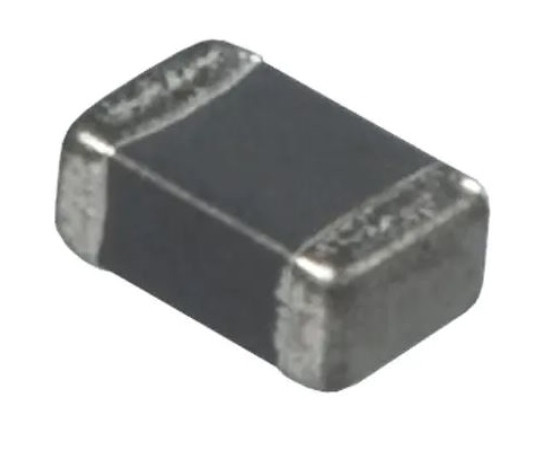

MLZ2012A1R0WT000 TDK Power inductor

Symbol Micros: D0805S0001.00/0.090A/0.10Rk

313183

D0805S0001.00/0.090A/0.10Rk

Contractor Symbol:

Case : Rys.LQM21

Datasheet

Technical drawing Add to favourites

Power inductor; SMD0805; inductance: 1uH; 20%; current: 90mA; resistance: 0.10R; 10MHz; operating temperature: -55°C ~ 125°C

Parameters

Case:	0805
Dimensions:	2x1.25x1.25mm
Inductance:	1nH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	0,9A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	0805
Dimensions:	2x1.25x1.25mm
Inductance:	1nH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	0,9A
Resistance:	0,1 Ohm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
