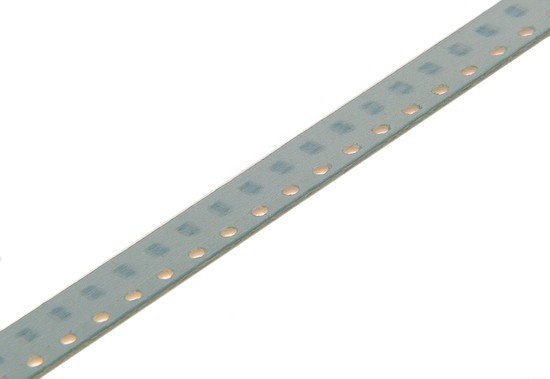

AIML-0805-220 Abracon Inductor

Symbol Micros: D0805S0022.00/0.005A/1.10Rk

55958

D0805S0022.00/0.005A/1.10Rk

Contractor Symbol:

Case : Rys.DLF0805

Datasheet

Technical drawing Add to favourites

Inductor; SMD0805; 22uH; 10%; 0.005A; 1.10R; 1MHz; operating temperature: -55°C~125°C

Parameters

Manufacturer:	ABRACON
Mounting:	SMD
Case:	0805
Inductance:	22uH
Current:	5,0mA
Resistance:	1,1 Ohm
Tolerance:	10%

All parameters

Manufacturer:: SSE Manufacturer part number: AIML-0805-220K RoHS Case style: Rys.DLF0805

In stock:

1057 pcs.

Quantity of pcs.	10+	30+	100+	500+	2017+
Net price (EUR)	0,0742	0,0371	0,0203	0,0127	0,0106

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
2017 Quantity (multiple: 10)

- +

• Parameters

Manufacturer:	ABRACON
Mounting:	SMD
Case:	0805
Inductance:	22uH
Current:	5,0mA
Resistance:	1,1 Ohm
Tolerance:	10%
Operating temperature (range):	-55°C ~ 125°C
