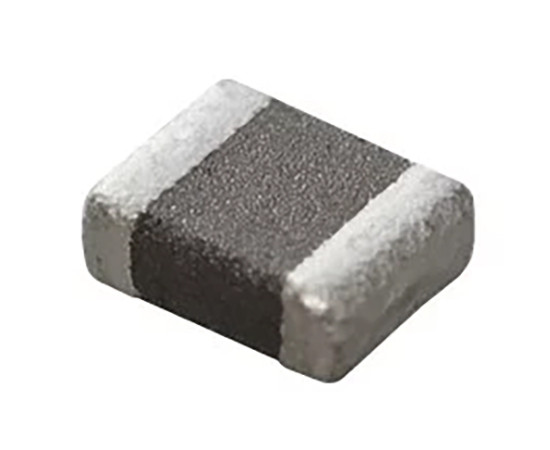

DFE252012F-2R2M=P2 Murata Power inductor

Symbol Micros: D1008S0002.20/3.300A/0.082Rm A

535899

D1008S0002.20/3.300A/0.082Rm A

Contractor Symbol:

Case : Rys.DFE252012F

Datasheet

Technical drawing Add to favourites

Power inductor; SMD1008; inductance: 2.2uH; 20%; current: 3.3A; resistance: 0.082R; Automotive; AEC-Q200; operating temperature: -40°C ~ 125°C

Parameters

Manufacturer:	MURATA
Inductor type:	Power
Mounting:	SMD
Case:	1008
Inductance:	2,2uH
Current:	3,3A
Resistance:	0,082 Ohm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-19

Quantity of pcs.: 3000

• Parameters

Manufacturer:	MURATA
Inductor type:	Power
Mounting:	SMD
Case:	1008
Inductance:	2,2uH
Current:	3,3A
Resistance:	0,082 Ohm
Tolerance [%]:	20%
Dimensions:	2,5x2x1,2mm
Operating temperature (range):	-40°C ~ 125°C
