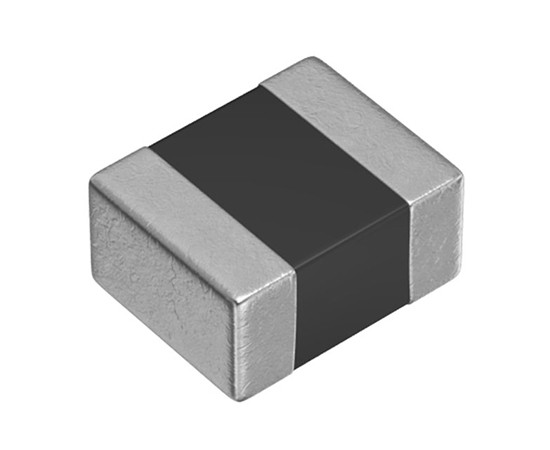

MLP2520S100MT0S1 TDK Power inductor

Symbol Micros: D1008S0010.00/0.700A/0.280Rm

538380

D1008S0010.00/0.700A/0.280Rm

Contractor Symbol:

Case : Rys. MLP2520

Datasheet

Add to favourites

Power inductor; SMD1008; inductance: 10uH; 20%; current: 0.7A; resistance: 0.28R; 2MHz; operating temperature: -40°C ~ 125°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Case:	1008
Inductance:	10uH
Current:	0,7A
Resistance:	0,28 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	SMD
Case:	1008
Inductance:	10uH
Current:	0,7A
Resistance:	0,28 Ohm
Tolerance [%]:	20%
Dimensions:	2,5x2x1mm
Operating temperature (range):	-40°C ~ 125°C
