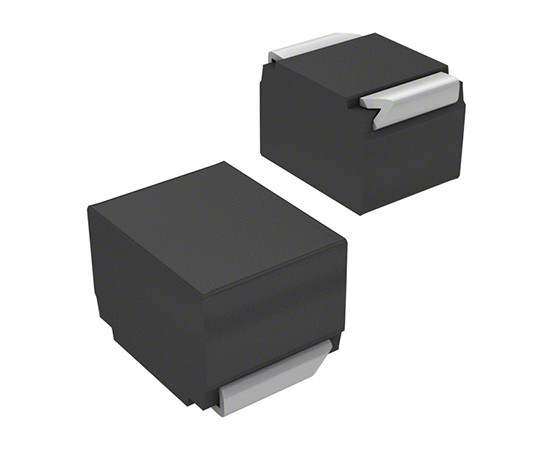

B82422H1223K100 TDK Inductor

Symbol Micros: D1210S0022.00/0.220A/2.40Rk

497980

D1210S0022.00/0.220A/2.40Rk

Contractor Symbol:

Case : Rys.B82422-H100

Datasheet

Technical drawing Add to favourites

Inductor; SMD1210; 22uH; 10%; 0.220A; 2.40R; 2,52MHz; operating temperature: -55°C~150°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	22uH
Current:	220mA
Resistance:	2,4 Ohm
Tolerance:	10%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	22uH
Current:	220mA
Resistance:	2,4 Ohm
Tolerance:	10%
Operating temperature (range):	-55°C ~ 150°C
