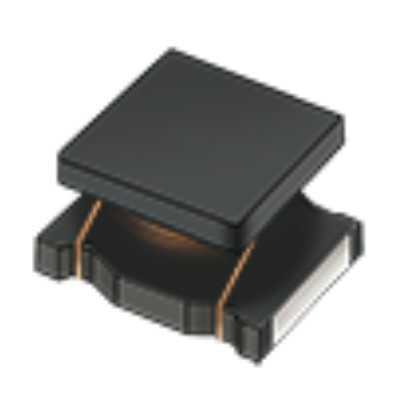

LQH32CN220K53L Murata Power inductor

Symbol Micros: D1210S0022.00/0.250A/0.923R

404428

D1210S0022.00/0.250A/0.923R

Contractor Symbol:

Case : Rys.LQH32CN

Datasheet

Technical drawing Add to favourites

-Leistungsinduktor; SMD1210; inductance: 22uH; 10%; current: 0.25A; resistance; 923mR; 19MHz; operating temperature: -40°C ~ 85°C

Parameters

Case:	1210
Current:	0,25A
Dimensions:	3.2x2.5x2mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	MURATA
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	1210
Current:	0,25A
Dimensions:	3.2x2.5x2mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	MURATA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Resistance:	0,923Ohm
Tolerance [%]:	10%
