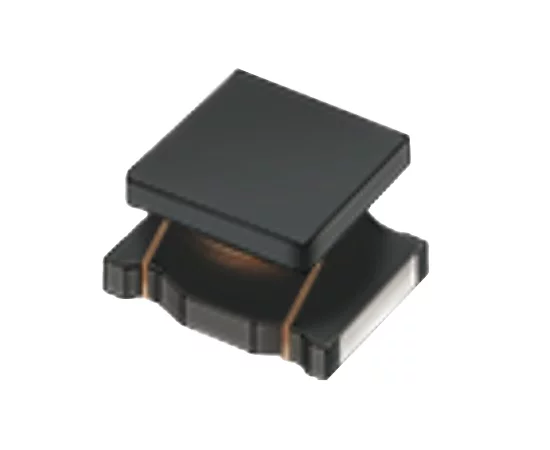

Inductor: 22uH

Symbol Micros: D1210S0022.00/0.300A/0.77Rk

15692

D1210S0022.00/0.300A/0.77Rk

Contractor Symbol:

Case : Rys.NLCV32T

Datasheet

Technical drawing Add to favourites

Inductor; SMD1210; 22uH; 10%; 0.300A; 0.77R; 2,52MHz; operating temperature: -40°C~105°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	22uH
Current:	0,3A
Resistance:	0,77 Ohm
Tolerance:	10%

All parameters

Manufacturer:: TDK Manufacturer part number: NLCV32T-220K-PF RoHS Case style: Rys.NLCV32T Datasheet

In stock:

8000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2433	0,1226	0,0739	0,0583	0,0538

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000/10000 Quantity (multiple: 1)

- +

Manufacturer:: TDK Manufacturer part number: NLCV32T-220K-PF RoHS Case style: Rys.NLV32T Datasheet

In stock:

108 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2433	0,1226	0,0739	0,0583	0,0538

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	22uH
Current:	0,3A
Resistance:	0,77 Ohm
Tolerance:	10%
Operating temperature (range):	-40°C ~ 105°C
