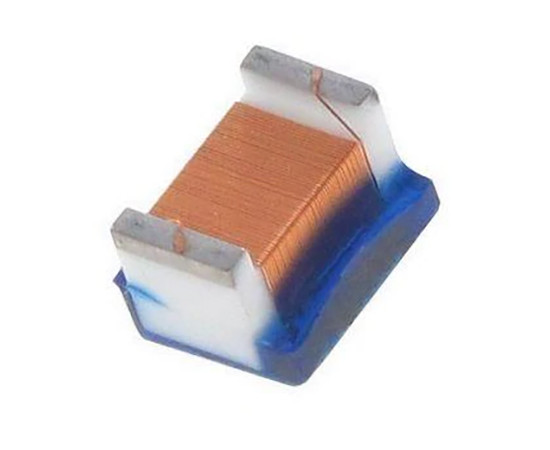

1812CS-222XJLC Coilcraft Inductor

Symbol Micros: D1812S0002.20/0.340A/2.20Rj

500238

D1812S0002.20/0.340A/2.20Rj

Contractor Symbol:

Case : Rys.1218CS

Datasheet

Technical drawing Add to favourites

Inductor; SMD1812; 2.2uH; 5%; 0.340A; 2.2R; 7,9MHz; operating temperature: -40°C~125°C

Parameters

Case:	1812
Current:	0,340A
Inductance:	2,2uH
Manufacturer:	Coilcraft
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
Resistance:	2,2 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	1812
Current:	0,340A
Inductance:	2,2uH
Manufacturer:	Coilcraft
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
Resistance:	2,2 Ohm
Tolerance:	5%
