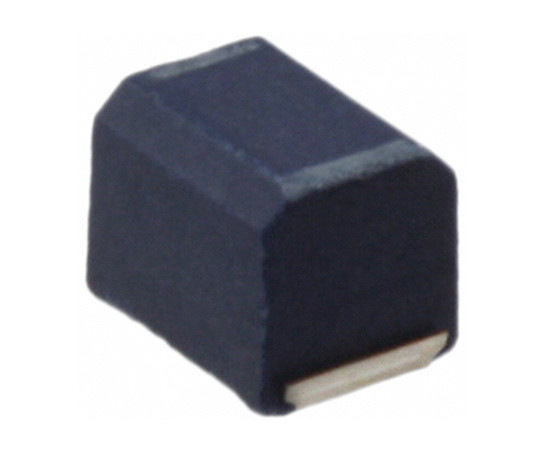

NL453232T-4R7J-PF TDK Inductor

Symbol Micros: D1812S0004.70/0.315A/1.00Rj

47779

D1812S0004.70/0.315A/1.00Rj

Contractor Symbol:

Case : Rys.NL453232T

Datasheet

Technical drawing Add to favourites

Inductor; SMD1812; 4.7uH; 5%; 0.315A; 1R; 7,96MHz; operating temperature: -40°C~105°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1812
Inductance:	4,7uH
Current:	0,315A
Resistance:	1 Ohm
Tolerance:	5%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1812
Inductance:	4,7uH
Current:	0,315A
Resistance:	1 Ohm
Tolerance:	5%
Operating temperature (range):	-40°C ~ 105°C
