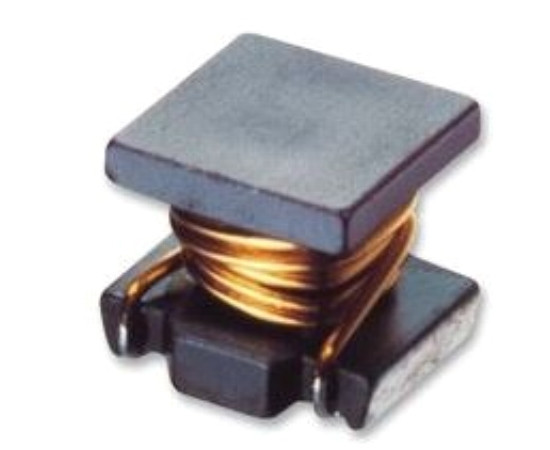

LQH55DN4R7M03L Murata Inductor

Symbol Micros: D2220S0004.70/2.700A/0.041Rm

298551

D2220S0004.70/2.700A/0.041Rm

Contractor Symbol:

Case : Rys.LQH55

Datasheet

Technical drawing Add to favourites

Inductor; SMD2220; 4.7uH; 20%; 2.70A; 0.0574R; 1MHz; operating temperature: -40°C~80°C

Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	2220
Inductance:	4,7uH
Current:	2,70A
Resistance:	0,0574Ohm
Tolerance:	20%

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQH55DN4R7M03L Case style: Rys.LQH55

External warehouse:

1050 pcs.

Quantity of pcs.	350+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4214

Add to comparison tool Add inquiry (RFQ)

Packaging:
350

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	2220
Inductance:	4,7uH
Current:	2,70A
Resistance:	0,0574Ohm
Tolerance:	20%
Operating temperature (range):	-40°C ~ 80°C
