B0503XT-1WR3

Symbol Micros: DC B0503xt-1wr3

335499

DC B0503xt-1wr3

Contractor Symbol:

Case : MNs-13.2x8.5-8x

Datasheet

Technical drawing Technical drawing Add to favourites

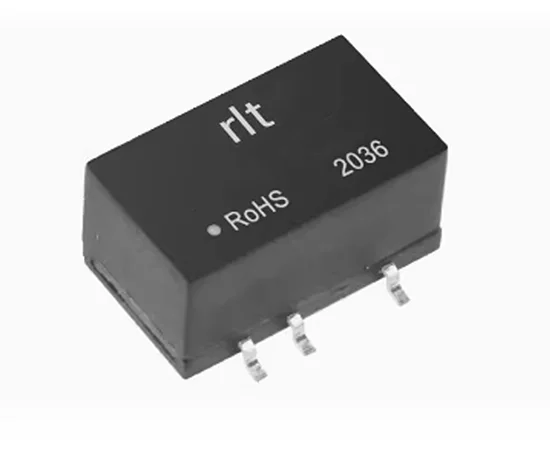

DC/DC Converter, 1W, 300mA, Vin 5V, Vout 3.3V, Viso 1500VDC, EFF 75% Replacement for: AM1L-0503S-FZ

Parameters

Output current [A]:	300mA
Power:	1W
Insulation breakdown voltage:	1500V
Output voltage [V]:	3,3V
Input voltage:	5V
Case:	SMD
Regulated:	NO

All parameters

Manufacturer:: RLT Manufacturer part number: B0503XT-1WR3 RoHS Case style: MNs-13.2x8.5-8x Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	4+	15+	60+	300+
Net price (EUR)	1,9604	1,5916	1,4275	1,3466	1,3061

Add to comparison tool Add inquiry (RFQ)

Packaging:
15/60 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-29

Quantity of pcs.: 15

• Parameters

Output current [A]:	300mA
Power:	1W
Insulation breakdown voltage:	1500V
Output voltage [V]:	3,3V
Input voltage:	5V
Case:	SMD
Regulated:	NO
