B0505XT-1WR3

Symbol Micros: DC B0505xt-1wr3

335500

DC B0505xt-1wr3

Contractor Symbol:

Case : MNs-13.2x8.5-8x

Datasheet

Technical drawing Technical drawing Add to favourites

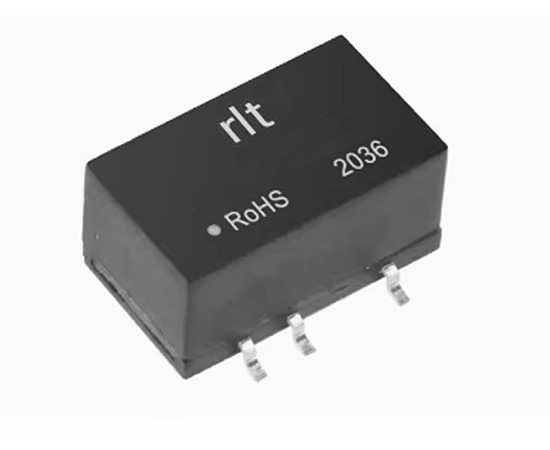

DC/DC Converter, 1W, 200mA, Vin 5V, Vout 5V, Viso 1500VDC, EFF 80% Replacement for: AM1L-0505S-FZ, AM1LS-0505S-NZ

Parameters

Output current:	0,2A
Power:	1W
Insulation breakdown voltage:	1500V
Output voltage:	5V
Input voltage:	5V
Case:	SMD
Regulated:	NO

All parameters

Manufacturer:: RLT Manufacturer part number: B0505XT-1WR3 RoHS Case style: MNs-13.2x8.5-8x Datasheet

In stock:

70 pcs.

Quantity of pcs.	1+	4+	15+	60+	200+
Net price (EUR)	1,9376	1,5708	1,4062	1,3239	1,2909

Add to comparison tool Add inquiry (RFQ)

Packaging:
15/200 Quantity (multiple: 1)

- +

• Parameters

Output current:	0,2A
Power:	1W
Insulation breakdown voltage:	1500V
Output voltage:	5V
Input voltage:	5V
Case:	SMD
Regulated:	NO
