FN1-05S05H6

Symbol Micros: DC FN1-05S05H6

500413

DC FN1-05S05H6

Contractor Symbol:

Case : MNp-19.5x9.8-7h

Datasheet

Technical drawing Add to favourites

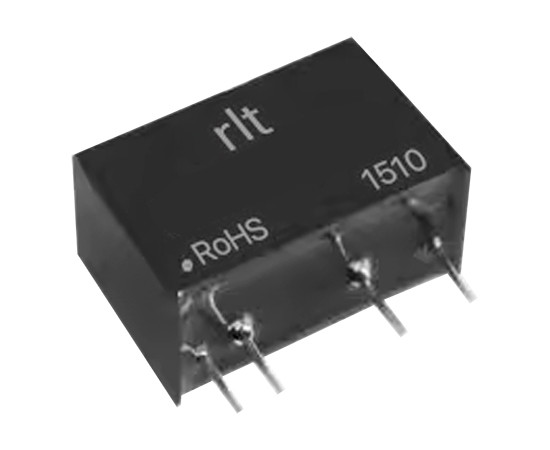

DC/DC converter; isolated; single output; 1W; Vin 4.5V~5.5V; Vout 5V; Iout 200mA; isolation 6000V; efficiency 80%; RoHS; Replacement for: AM1D-0505SH60Z, AM1DS-0505SH60Z, H0505S-1WR3,

Equivalents

Parameters

Input voltage range:	4,5V ~ 5,5V
Output current 1:	200mA
Power:	1W
Insulation breakdown voltage:	6000V
Secondary voltage 1:	5V

All parameters

Manufacturer:: AIPULNION Manufacturer part number: FN1-05S05H6 RoHS Case style: MNp-19.5x9.8-7h Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,0394	1,7030	1,5081	1,4130	1,3596

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	4,5V ~ 5,5V
Output current 1:	200mA
Power:	1W
Insulation breakdown voltage:	6000V
Secondary voltage 1:	5V

Equivalents

H0505S-1WR3
