K7805-500R3

Symbol Micros: DC K7805-500r3 AIP

500263

DC K7805-500r3 AIP

Contractor Symbol:

Case : MNp-11.6x7.55-3

Datasheet

Technical drawing Add to favourites

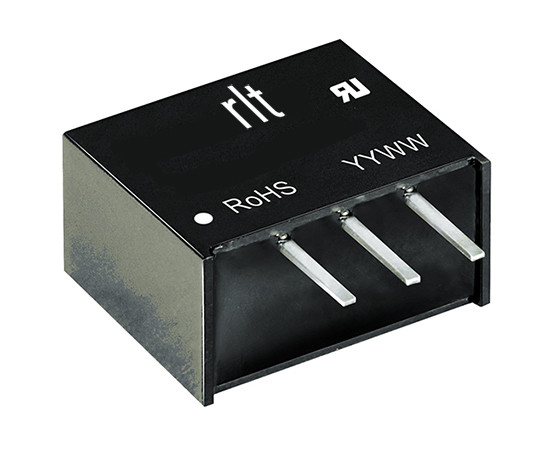

DC/DC converter; non-isolated; dual output; 2.5W; Vin 6.5V~36V; Vout ±5V; Iout 500mA; RoHS; Zamiennik dla: AMSR-7805-NZ; R-78E5.0-0.5; DMV7805-500; K7805-500R3; K78L05-500R3;

Parameters

Input voltage range:	6,5V ~ 36V
Output current 1:	500mA
Power:	2,5W
Insulation breakdown voltage:	0V
Secondary voltage 1:	5V
Secondary voltage 2:	-5V

All parameters

Manufacturer:: AIPULNION Manufacturer part number: K7805-500R3 RoHS Case style: MNp-11.6x7.55-3

In stock:

253 pcs.

Quantity of pcs.	1+	4+	17+	85+	255+
Net price (EUR)	1,9675	1,5035	1,2877	1,1879	1,1578

Add to comparison tool Add inquiry (RFQ)

Packaging:
17/255 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	6,5V ~ 36V
Output current 1:	500mA
Power:	2,5W
Insulation breakdown voltage:	0V
Secondary voltage 1:	5V
Secondary voltage 2:	-5V
