K7815-500R3-LB

Symbol Micros: DC K7815-500r3-lb

355402

DC K7815-500r3-lb

Contractor Symbol:

Case : MNp-10.27x4.1-3

Datasheet

Technical drawing Add to favourites

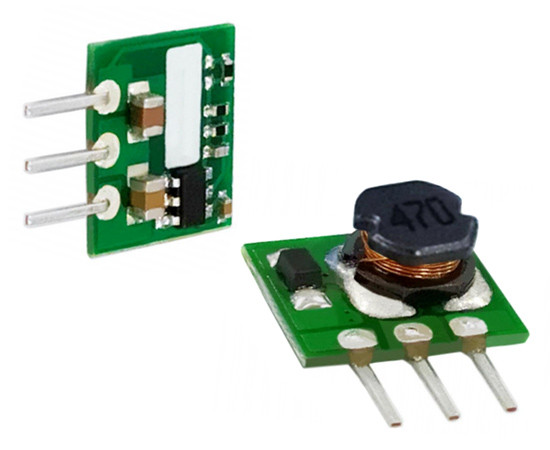

Switching Regulator, 500mA, Vin 19÷36V, Vout 15V, EFF 90/95%

Parameters

Output current:	500mA
Input voltage range:	19~36V
Output voltage:	15V
Input voltage:	24V
Case:	SIP
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K7815-500R3-LB RoHS Case style: MNp-10.27x4.1-3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	0,9724	0,7128	0,5712	0,4909	0,4626

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Output current:	500mA
Input voltage range:	19~36V
Output voltage:	15V
Input voltage:	24V
Case:	SIP
Regulated:	NO
